EXTRUSION MACHINERY

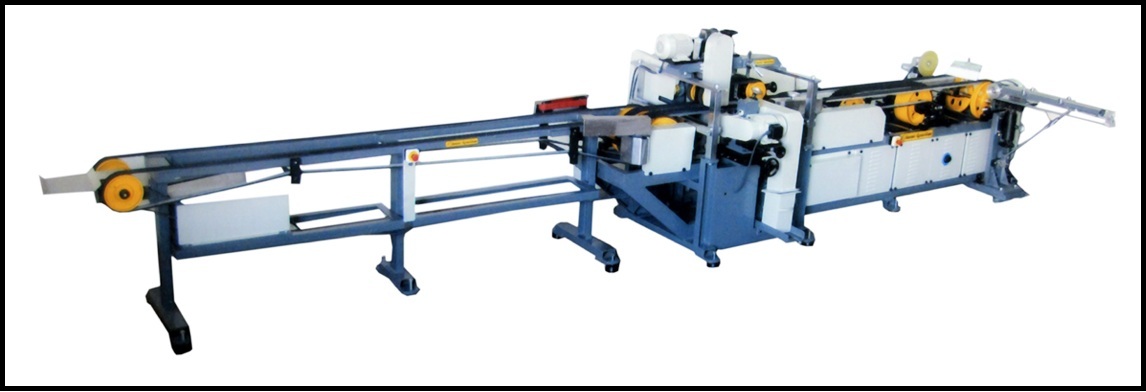

1. CONVEYOR

Conveyor unit consists of 3 major sections.

a) Transverse conveyor

       Extruded electrodes transferred to the main conveyor by this unit. The

speed of the conveyor can be varied using a variable speed drive.

b) Main conveyor

                      Electrodes on the main conveyor aligned for orientation by the corrugated

belt section and then by the aligning unit. Electrode tip end and brushing operation

carried out after the aligning section. The speed of the conveyor can be varied using

a variable speed drive.

c) Unloading conveyor

                       Brand name printing is carried out in this section and the finished

electrodes picked up for air drying from this section. The speed of the conveyor can be

varied using a variable speed drive.



Plant Capacity	1,3,5,7,8 & 10
Power	6.50 hp.
Main Conveyor	2.0 hp. A.C. Variable.
Take of Conveyor	1.0 hp. A.C. Variable.
Rotating Cater Pillar	0.75hp A.C. Variable.
High speed brushing & tip end	0.75 x 3 ( 2.25 hp) A.C.
Unloading Conveyor	0.5 hp A.C.  Variable.
