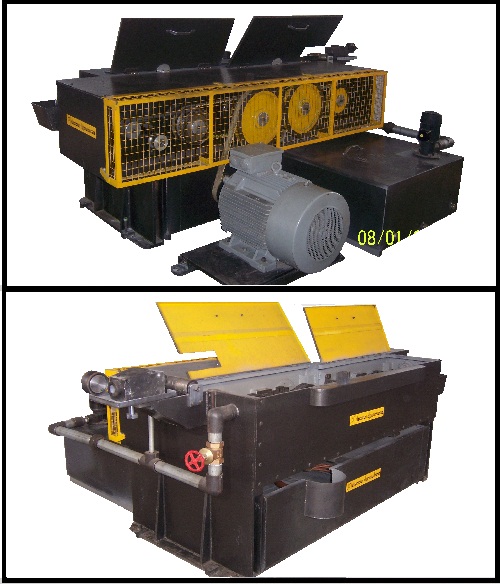

The wet wire drawing machine is made of steel fabrication structure that can
withstand heavy load at high speed. It consists of 10 dies that completely immersed
in the lubricant. The lubricant circulations through heavy duty pump continuously
200lits/min.The shaft bearing is provided with oil seal and made such arrangement to
prevent lubricant contamination. The shafts and Bearing area precisely machined
on high tech machinery. Accurate & high efficiently power transmission through
timing belts that improves machine efficiency.
|
MACHINE |
Slip type heavy duty wet wire drawing machine |
|
INLET SIZE |
2.2 mm max. |
|
FINISHED SIZE |
0.8 mm to 1.6mm |
|
DRAWING SPEED |
12.5 meters/sec max. |
|
AREA REDUCTION |
14-15.5% max. |
|
BUILT IN AREA REDUCTION |
13.50% |
|
NO.OF DIES |
10 |
|
DIE COOLING |
Completely immerse in Lubricant |
|
NO. OF SHAFT |
5 |
|
CAPSTAN |
C50 Forged 55-60 HRC (Optional -TC Rings) |
|
ELECTRICAL MOTOR |
60 HP AC motor, 1440 RPM. |
|
DRIVE |
AC Inverter |
|
POWER TRANSMISSION |
Timing Belts |
|
LUBRICANT CIRCULATION |
200 Liters/Min., 2HP Vertical Pump. |
