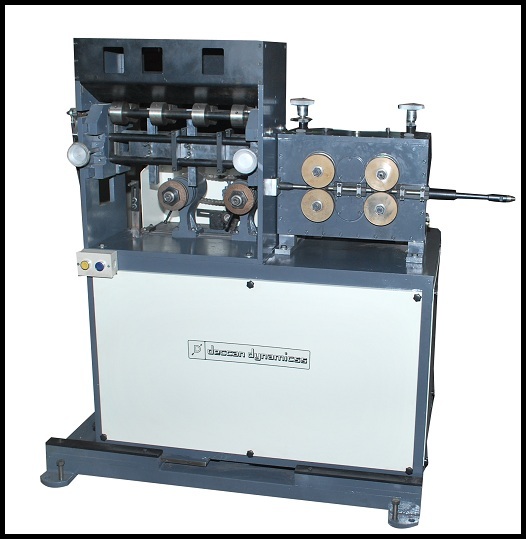

WIRE FEEDER - VERTICAL WIRE FEEDER - HORIZONTAL
Wire feeder feed the Straightened and cut wires loaded on the hopper into the
extrusion press with variable feed rates.
|
Plant Capacity |
1 Ton |
3 Ton |
5 Ton |
|
|
Type |
Vertical |
Vertical |
Vertical |
|
|
Power |
Pick up |
2.0 HP A.C. Variable. |
2.0 HP A.C. Variable. |
2.0 HP A.C. Variable. |
|
Feeding |
3.0 HP A.C. Variable. |
3.0 HP A.C. Variable. |
||
|
Agitating |
0.5 HP |
0.5 HP |
0.5 HP |
|
|
Number of Pick up rollers |
2 Sets. |
2 Sets. |
2 Sets. |
|
|
Number of feed rollers |
1 Set |
2 Sets. |
2 Sets. |
|
|
Wire Sizes |
2.5 to 5 mm |
2.5 to 5 mm |
2.5 to 5 mm |
|
|
Feed Rate |
90 m/min. |
175 m/min. |
225 m/min. |
|
|
Hopper capacity |
300 kgs. |
300 kgs. |
300 kgs. |
|
