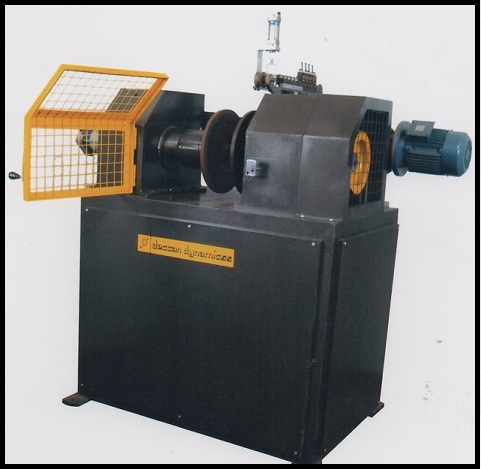

SPOOLER



The final winding of wire is done on the spooler. This machine equipped with travers

motion device with separate AC Variable drive to wind wire precisely. Its main motor

is also equipped with AC Variable drive to synchronies the winding pattern. This

machine is also equipped with length counter to reach exact wire length and stop

the machine. The spool is provided with pneumatic operated tail stock to clamp the

spool and it's also reduces the loading -unloading time for operator. Pneumatic

cylinder is also provided to hold the wire during reloading operation of spool. The

machine is provided with 9+9 vertical and horizontal killing rollers to set the better

cast and helix.
